Understanding the SPDT Switch
1. Decoding SPDT
Let's dive into the world of switches, shall we? If you've ever tinkered with electrical circuits or pondered the mysteries of home wiring, you've likely stumbled across the terms "SPDT" and "3-way switch." The burning question is: are they the same thing? Well, not exactly, but they're definitely related. Think of it like this: all squares are rectangles, but not all rectangles are squares. SPDT is a type of switch, and a 3-way switch uses SPDT functionality, but a simple SPDT switch isn't automatically a 3-way setup. Confused? Don't worry, we'll unravel it.

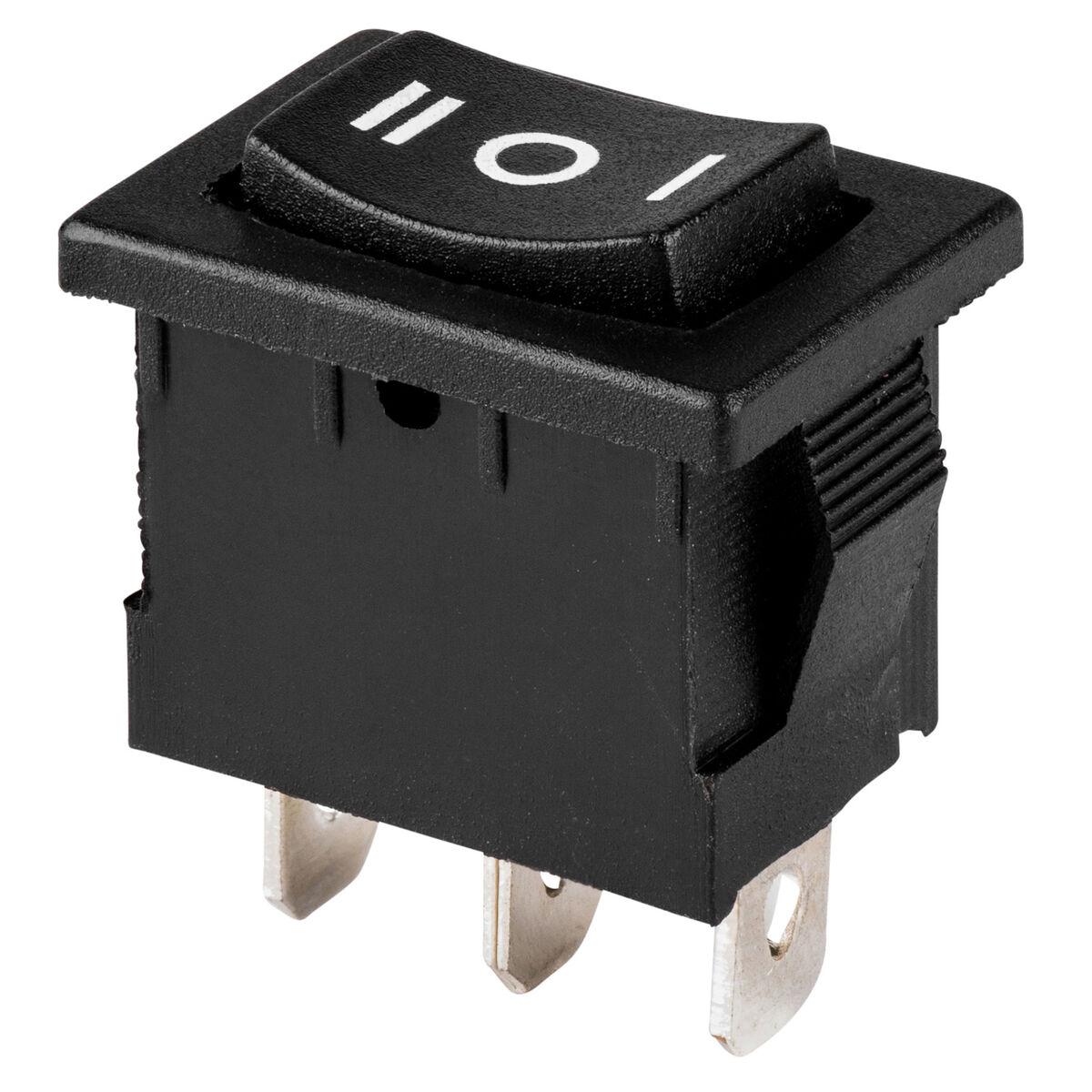

SPDT stands for "Single Pole Double Throw." Sounds technical, right? Basically, it means one input (the "single pole") can be connected to either of two outputs (the "double throw"). Imagine a railway switch that diverts a train to one of two different tracks. That's essentially what an SPDT switch does with electricity. It gives you a choice of two different paths for the current to flow.
Now, a regular SPDT switch just toggles between those two paths. You flip it one way, and the electricity goes down path A. Flip it the other way, and it goes down path B. Simple as that. This makes them super useful for things like turning on a light with one switch, or selecting between two different devices on a circuit.
However, the magic of the 3-way switch comes from cleverly using two SPDT switches. Think of them as working together in a team. One switch controls the "input" and the other reads the output. It's the collaboration that enables you to control a light from two different locations, like the top and bottom of a staircase.
